Product Description:

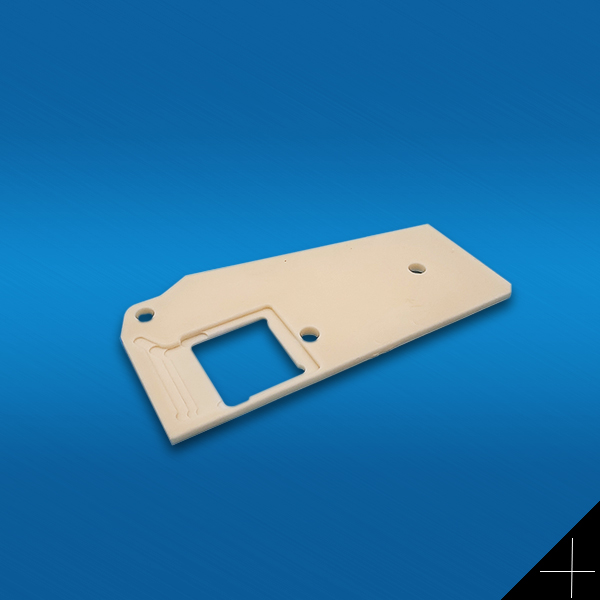

High Precision Ultra Hardness Alumina Machine Ceramic Part
Product Features:
1) High hardness, high strength, high wear and chemical corrosion resistance, low expansion coefficient
2) Good wear-resistant
3) High corrosion-resistant
4) Long Time warranty
Various sizes available, and we can customize as your requirement
The specification of technical ceramic parts
|
Option Materials
|
alumina, zirconia, composite materials optional
|
|
Outer diameter
|
0.5 ~800 mm
|
|
Length
|
1~1000mm
|
|
Roughness
|
To be Ra0.05
|
|
Surface treatment
|
Polished, Glazed, Metalized availability
|
|
Cosmetic
|
Smooth surface without no contamination, deformation, and crack
|
The accuracy achieved after precision machining
(1) Axis: roundness 0.002 mm, concentricity 0.002 mm, smoothness Ra0.1;
(2) Hole: the minimum processing hole diameter is 0.2 mm and the depth is up to 6mm;
(3) Slot: min. value to be 0.1 mm of narrow groove, and grooves with custom shapes;
(4) Plane: 0.1mm sheet with minimum processable thickness, parallelism 0.001mm, measurement tolerance 0.001 mm, finish Ra0.1;
(5) Thread: The minimum machinable M2 internal thread, the accuracy of GB-7h, the external thread size is not limited, the accuracy is GB-6g.
The main characteristics of the technical ceramic parts
1. They offer different grade dimensional accuracy per sintered only, precision machining
2. They are more cost-effective ceramic parts with equivalent performance among all other technical ceramics
3.. High hardness, it is can be up to 1700 HV, and Super compressive strength up to 2240 Mpa
3. High heat resistance: Alumina ceramic parts offer excellent thermal stability, which means that it is widely used in areas where resistance to high temperatures is essential.
4. Good wear resistance: it is an ideal choice to wear parts in high abrasive industry
5. High electrical resistivity: used in all-electric products, electric heating products, and wear-resistant machinery parts.
6. High corrosion resistance: It is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
7. We support a variety of customized alumina ceramic parts base on customer's drawing, sample, or reference parameters
The description of alumina ceramic parts
Aluminum oxide (Alumina) has an extensive application due to its versatility and low cost of material than other advanced ceramics. Alumina offers high electrical insulation resistance, high-temperature resistance, strong hardness, wear resistance, and good chemical stability, making it a good material to withstand high temperature and chemical corrosion.
Our factory produces a selection of purity of alumina from 75% to 99.8%, all of the ceramic parts we supplied are with a dense body via dry pressing, hot pressing, ceramic injection molding, and ISO pressing. In order to achieve some special application for fitting, reducing the friction, increasing the insulation, we provide a serial of secondary processes after sintering, covering CNC machining, polishing, glazing, and metalizing.
We manufacture a wide range of alumina ceramic rings, including ceramic tubes, ceramic rings, ceramic disc, ceramic rod, ceramic arms, ceramic wire guides. Whatever, its a prototyping case, or high volume demand, we believe we are able to provide you a desirable solution.
Application and After-Sales Service:
We offer full range of ceramic washer, spacer, seal ring and other parts for industry applications like bushing, pump seal ring, shaft ring, etc.
Our alumina ceramic rings/loops are exported to USA, Canada, Europe, and South America and Southeast Asia.
After-sales service:
Accept any repair of the product, help to improve technology for customer. And also provide long-term technical help and support for you.
Why Choose Us?
Precision Machining & Fabrication
1/
Quality Control
Our factory has a rigorous, professional and veteran quality assurance team, all processings strictly perform the ISO9001 quality management system.
In order to maintain product performance and stability, and to achieve the level of the industrial standard, we execute incoming quality control, in-process quality control, and outgoing quality as the core processes of our quality system.
2/
Precision Control
We got professional inspection team and equipment, and treat every product to a strict standard, dimensional accuracy up to 0.001mm, we will not to allow failed products to enter the market.
3/
Scalable Capability
We are able to produce a scalable quantity of ceramic parts, even if one-off prototype, or a large scale production, our facilities and expertise is ready to undertake customers' diverse needs.
4/
Prompt Response
For custom parts, you will get free quote within 24 hours (depending on the complexity), and to meet the urgent needs, we keep material in stock to make the lead time shorter.
